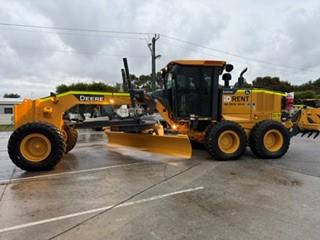

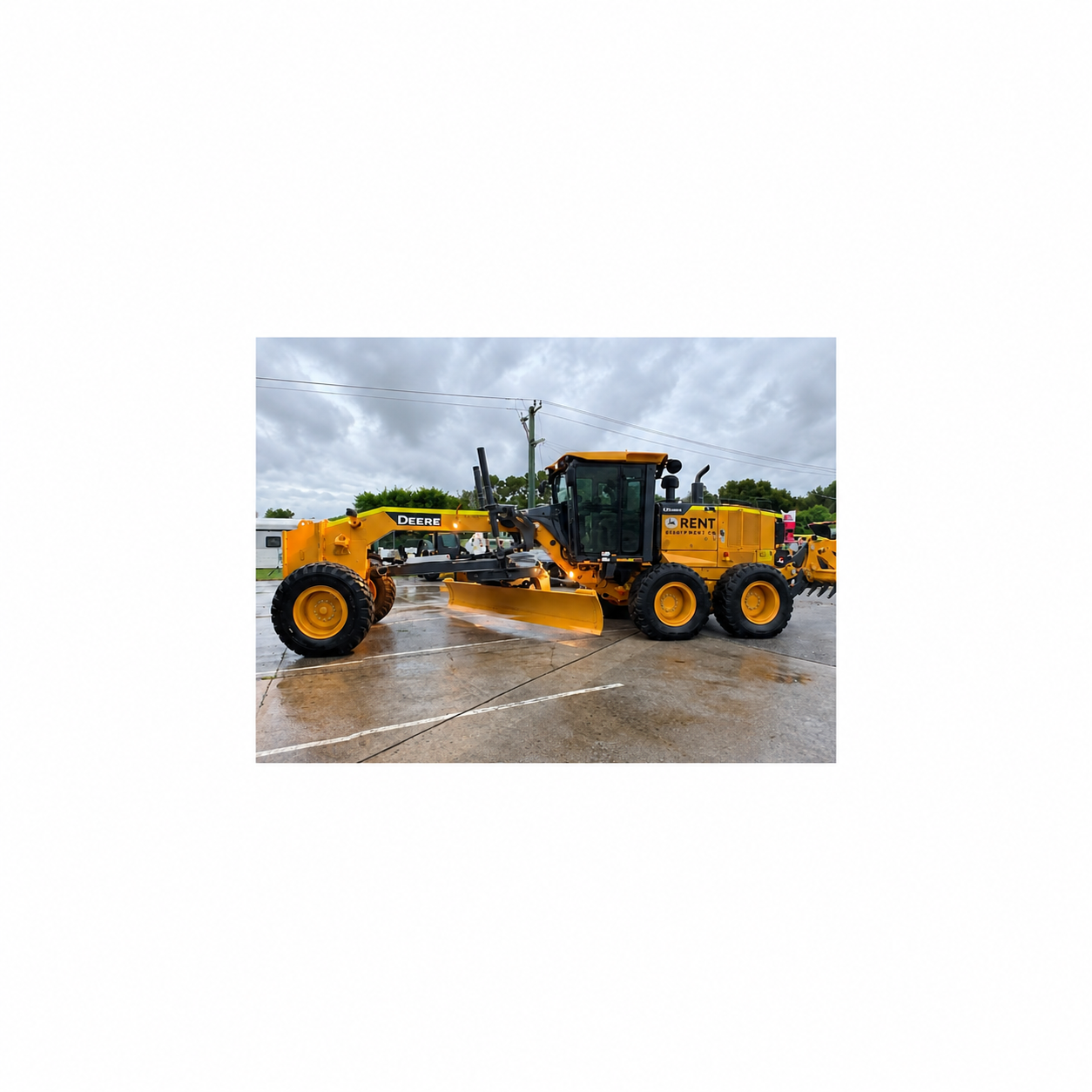

John Deere – 620GP Motor Grader, 14FT Blade
The John Deere 620GP Motor Grader with a 14FT blade is designed for reliable and precise grading performance across a range of construction and civil works projects. With its powerful performance and excellent operator control, it is ideal for road construction, site preparation, surface levelling and maintaining smooth, accurate grades. Its robust design makes it a dependable choice for demanding earthmoving applications.
Specifications
Model | John Deere 620GP |
|---|---|
MACHINE TYPE | Motor Grader |
DRIVE | 4WD |
ENGINE | John Deere PowerTech™ PSS 6.8L |
NUMBER OF CYLINDERS | 6 |
ENGINE DISPLACEMENT | 6.8 L (414 cu. in.) |
MAX. NET ENGINE POWER | 215 hp (160 kW) |
MAX. NET TORQUE | 1,005 Nm (741 lb.-ft.) |
TRANSMISSION | John Deere PowerShift Plus™ |
GEARS | 8 Forward / 8 Reverse |
MAX. TRAVEL SPEED | 45.5 km/h (28.3 mph) |
BLADE / MOLDBOARD LENGTH | 14 ft (4.27 m) |
BLADE HEIGHT | 610 mm (24 in.) |
BLADE THICKNESS | 22 mm (0.88 in.) |
BLADE SIDE SHIFT | 683 mm (26.9 in.) Left / Right |
CIRCLE ROTATION | 360° |
ARTICULATION ANGLE | 22° Left / Right |
TURNING RADIUS | 7.21 m (23 ft. 8 in.) |
TYPICAL OPERATING WEIGHT | Approx. 18,325 kg (40,400 lb.) |
FUEL TANK CAPACITY | 416.5 L (110 gal.) |
