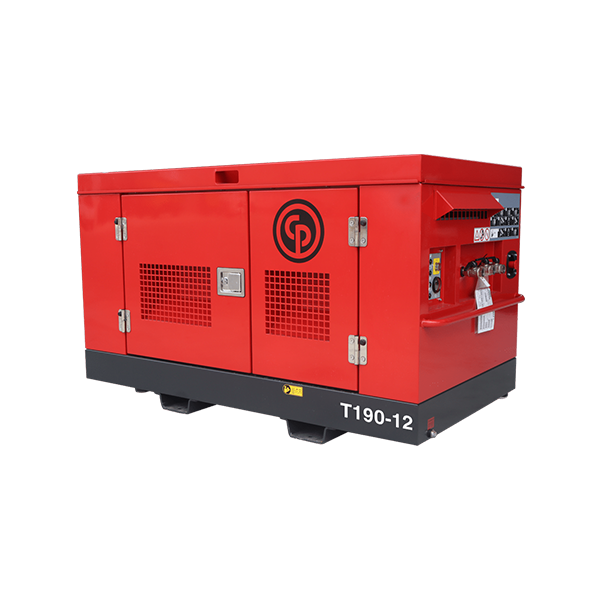

Chicago Pneumatic T190-12, 190 cfm Skid Mounted Diesel Air Compressor
Need more pressure without upsizing your compressor? The Chicago Pneumatic T190-12 offers 190 CFM at 12 bar – ideal for high-pressure applications like sandblasting, pneumatic drilling, and specialised tool use.
Designed to mount directly to trucks, trailers, or utes, this utility-style, skid-mounted compressor is built to handle demanding work environments. With a trusted Kubota diesel engine, compact footprint, and stackable housing, it’s ready to work when and where you are.
The T190-12 also features single-side servicing for reduced downtime and faster field maintenance.
Key Features
- 190 cfm output at 12 bar pressure
- Skid-mounted for truck and ute builds
- Powered by reliable Kubota diesel engine
- Compact, stackable footprint
- Single-side access for quick maintenance
High-pressure air, wherever the job takes you.
Specifications
Model | T190-12 |
|---|---|
Normal effective working pressure (bar (psi)) | 12(175) |
Free air delivery (l/s) | 92 |
Free air delivery (cfm) | 190 |
Free air delivery (m3/min) | 5.5 |
Max. ambient temperature at sea level (°C) | 50 |
Min. starting temperature (°C) | -10 |
Min. starting temperature (Cold Start Aid) (°C) | -20 |
Engine | – |
Model | Kubota V2403T |
Number of cylinders | 4 |
Power output @ normal shaft speed (kW) | 47.9 |
Full load RPM (rpm) | 2700 |
Unload RPM (rpm) | 1600 |
Capacity | – |
Engine oil (l) | 9.5 |
Compressor oil (l) | 11 |
Fuel Tank (l) | 100 |
Optional extended fuel tank (l) | 30 |
Box unit dimensions | – |
Length x Width x Height (mm) | 2050 x 1200 x 1230 |
Weight (kg) | 1200 |
