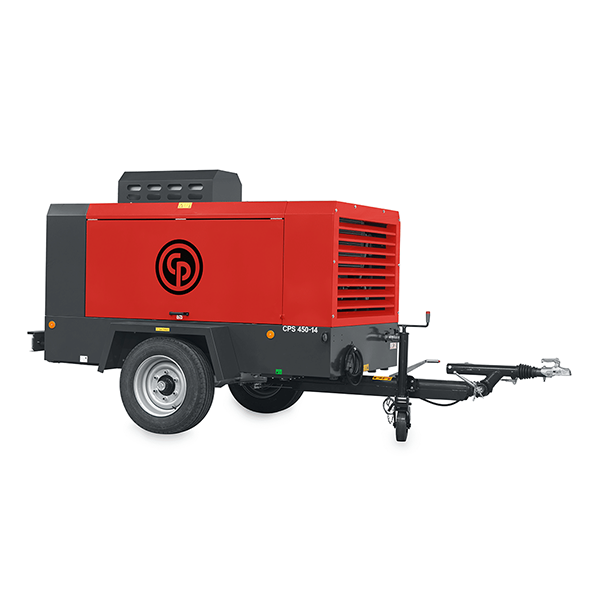

Chicago Pneumatic CPS450-14, 441 cfm Portable Diesel Air Compressor
Looking for serious pressure and performance? The CPS 450-14 offers 441 cfm at 14 bar – powerful airflow at higher pressures for demanding industrial and construction applications.
Why Choose the CPS 450-14?
- 441 cfm free air delivery at 14 bar
- Built tough for rugged environments
- Highly efficient diesel engine for lower costs
- Easy service access to minimise downtime
- Excellent towing design for site-to-site mobility
- Ideal for high-pressure tool operation
When the job demands more, choose the CPS 450-14.
Specifications
Model | CPS 450-14 |
|---|---|
Normal effective working pressure (bar (g)) | 14 |
Normal effective working pressure (psi (g)) | 200 |
Free air delivery (cfm) | 441 |
Free air delivery (m3/min) | 13 |
Free air delivery (l/s) | 208 |
Max. ambient temperature at sea level (°C) | 50 |
Min. starting temperature (°C) | -10 |
Min. starting temperature(Cold Start Aid)(°C) | -20 |
Engine brand | Cummins |
Tier | Tier 2 |
Model | QSB5.9-C180 |
Number of cylinders | 6 |
Power output @ normal shaft speed (kW) | 132 |
Full load RPM (rpm) | 2400 |
Unload RPM (rpm) | 1500 |
Unload RPM (rpm) | 1850 |
Capacity | – |
Engine oil (l) | 16.3 |
Compressor oil (l) | 26.5 |
Fuel tank (l) | 185 |
Cooling system (l) | 26 |
Dimensions – Boxed Version | – |
Length x Width x Height (mm) | 2800 x 1400 x 1600 |
Weight (kg) | 1825 |
Dimensions – Trailer Version | – |
Length x Width x Height (mm) | 4140 x 1940 x 2141 |
Weight (kg) | 2300 |
