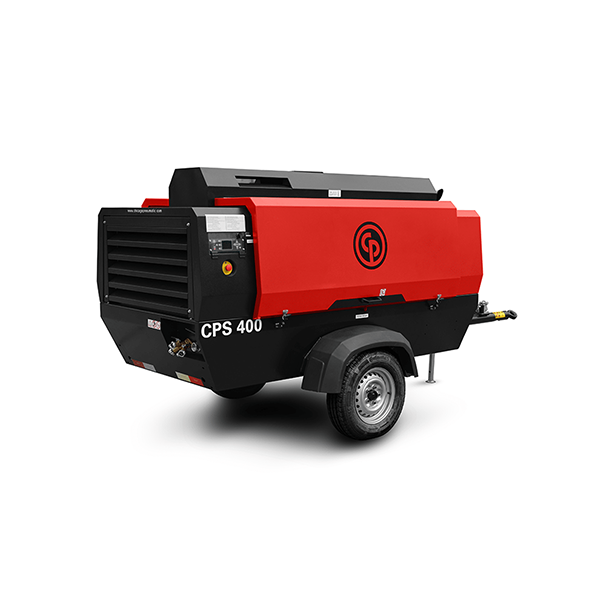

Chicago Pneumatic CPS400-7, 400 cfm Portable Diesel Air Compressor
When continuous airflow matters, trust the Chicago Pneumatic CPS400-7. Delivering 400 cfm at 7 bar, it’s perfect for powering multiple tools and supporting heavy-duty industrial operations.
Why Choose the CPS400-7?
- 400 cfm for serious on-site demands
- Strong, towable build for ultimate mobility
- Diesel-powered efficiency to reduce fuel bills
- Simple maintenance for less downtime
- Designed for tough Australian work conditions
- Quiet running for improved job site comfort
More air. More uptime. More value.
Specifications
Model | CPS 400-7 |
|---|---|
Normal effective working pressure (bar (g)) | 7 |
Normal effective working pressure (psi (g)) | 100 |
Free air delivery (cfm) | 410 |
Free air delivery (m3/min) | 12 |
Free air delivery (l/s) | 191 |
Max. ambient temperature at sea level (°C) | 50 |
Min. starting temperature (°C) | -10 |
Min. starting temperature(Cold Start Aid)(°C) | -20 |
Engine brand | Cummins |
Tier | Tier 2 |
Model | 4BTAA3.9-C125 |
Number of cylinders | 4 |
Power output @ normal shaft speed (kW) | 93 |
Full load RPM (rpm) | 2300 |
Unload RPM (rpm) | 1600 |
Unload RPM (rpm) | 1850 |
Capacity | – |
Engine oil (l) | 10 |
Compressor oil (l) | 24 |
Fuel tank (l) | 175 |
Cooling system (l) | 8.3 |
Dimensions – Boxed Version | – |
Length x Width x Height (mm) | 2458 x 1350 x 1525 |
Weight (kg) | 1600 |
Dimensions – Trailer Version | – |
Length x Width x Height (mm) | 4120 x 1890 x 1991 |
Weight (kg) | 1700 |
