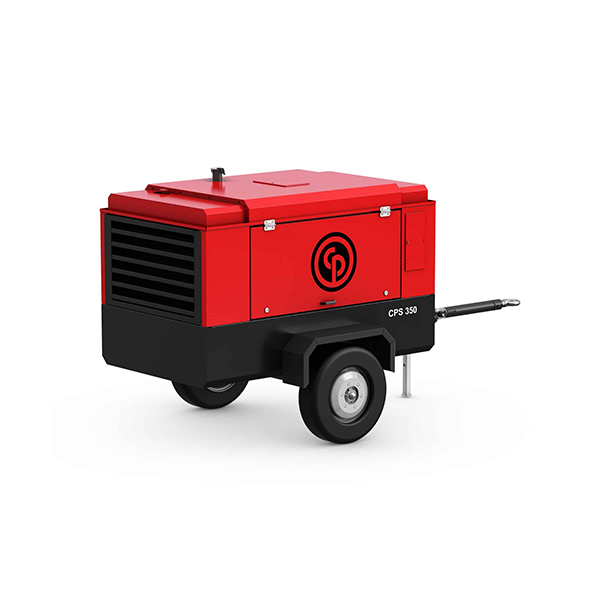

Chicago Pneumatic CPS350-12, 360 cfm Portable Diesel Air Compressor
Big air for big jobs. The CPS350-12 is engineered to deliver a massive 360 cfm at 12 bar, powering multiple tools or heavy equipment with ease. With unbeatable reliability and tough construction, it’s built for the harshest environments.
Why Choose the CPS350-12?
- High-output 360 cfm air delivery at 12 bar
- Robust build with heavy-duty towable frame
- Diesel efficiency for long run times
- Easy access panels for faster servicing
- Designed for rough terrain and demanding sites
- Built-in aftercooler options available (optional)
Bigger demands need bigger performance – and the CPS350-12 delivers.
Specifications
Model | CPS 350-12 |
|---|---|
Normal effective working pressure (bar (g)) | 12 |
Normal effective working pressure (psi (g)) | 175 |
Free air delivery (cfm) | 360 |
Free air delivery (m3/min) | 10 |
Free air delivery (l/s) | 166 |
Max. ambient temperature at sea level (°C) | 50 |
Min. starting temperature (°C) | -10 |
Min. starting temperature(Cold Start Aid)(°C) | -20 |
Engine brand | Cummins |
Tier | Tier 2 |
Model | 4BTAA3.9-C125 |
Number of cylinders | 4 |
Power output @ normal shaft speed (kW) | 93 |
Full load RPM (rpm) | 2300 |
Unload RPM (rpm) | 1600 |
Unload RPM (rpm) | 1850 |
Capacity | – |
Engine oil (l) | 10 |
Compressor oil (l) | 24 |
Fuel tank (l) | 175 |
Cooling system (l) | 8.3 |
Dimensions – Boxed Version | – |
Length x Width x Height (mm) | 2458 x 1350 x 1525 |
Weight (kg) | 1600 |
Dimensions – Trailer Version | – |
Length x Width x Height (mm) | 4120 x 1890 x 1991 |
Weight (kg) | 1700 |
