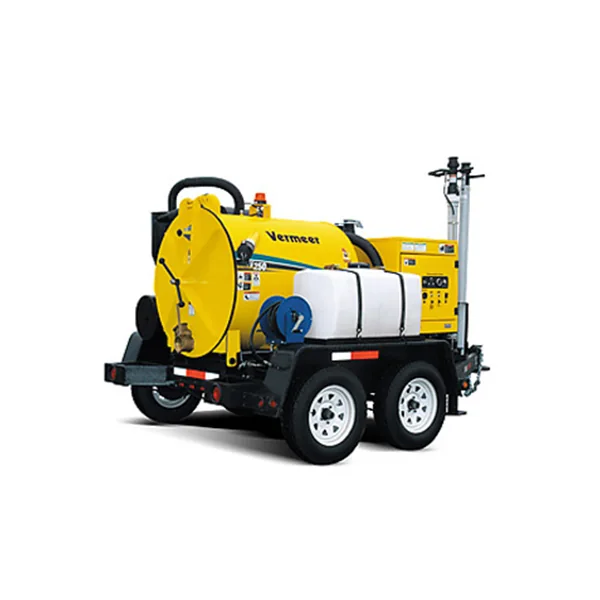

V250D Vacuum Excavator
Our Hydro Vacuum Excavator is a powerful, portable and versatile excavation system that offers municipalities and contractors a lower cost, portable system for potholing and vacuum applications. The trailer-mounted unit features tandem axles providing additional stability for a smooth ride.
This excavator comes equipped with a 25 hp Kubota diesel engine featuring an electric start and throttle. Wet or dry remediation of spoil is possible using the three-stage filtration process that includes a 2-micron washable filter.
One-man operation can be attained by using the reduction tools and hose extensions.
Specifications
Model | V250D |
|---|---|
Spoils Tank Capacity | 946.4 L |
Vacuum Pump | 575 cfm |
Vacuum | 15″ |
Diesel Engine Type | 31 hp (23.1 kW)
Yanmar diesel |
Water Tank Capacity | 378.5 L |
Vacuum Hose Inlet Choice 1 | 7.6 cm |
Vacuum Hose Sections | 1 – 18′ section
or 2 – 9′ sections |
Filters: Number | 1 |
Filters: Type | 2 micron washable/reusable |
Lift Type | Dual hydraulic cylinders |
Door Type | Full Open |
Lights | Strobe Light |
High Pressure Pump: Pressure | 3000 psi |
High Pressure Pump: Flow Rate | 15.1 Lpm |
Nozzle Pressure | 1600 psi |
High Pressure Hose Length | 9.1m |
Antifreeze Tank | 18.9 L |
Trailer Type | Tandem Axle Rubber Torsion |
Hitch Type | Pintle |
Width | 231.1 cm |
Length | 3.7 m |
Height | 221 cm |
Axle Ratings (each) | 1587.6 kg |
Brakes | Electric |
