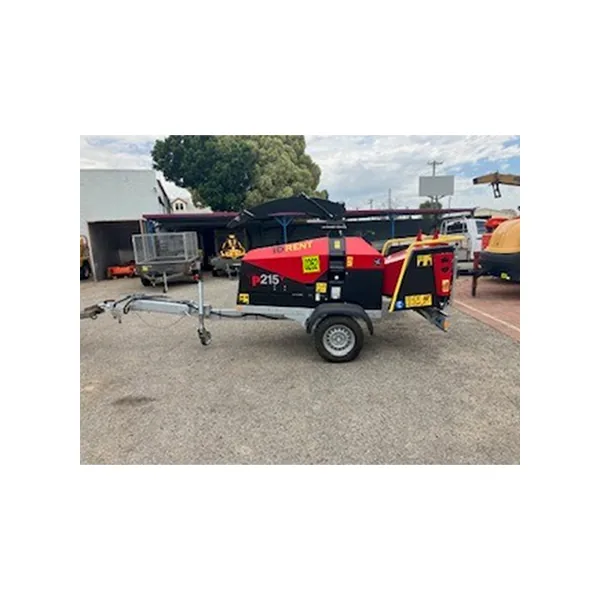

Linddana TP215 Woodchipper
The Linddana TP215 Woodchipper, Mobile 8″ is the smaller of our large machines. With its horizontal rollers, it can process trunk diameters of up to 215 mm with the market’s most aggressive feed system. Chip size is hydraulically adjusted using the feed speed. The height-adjustable ejector spout can be rotated 270°. The 44 kW Stave V Hatz diesel engine has clean combustion and guarantees technological and quality standards that will allow you to chip wood every day.
The Hatz engine also uses the newest technology to ensure that your wood chipping operations are green operations. TP 215 Mobile can be customised to your exact requirements, whether you need single or twin axles, a straight or height adjustable drawbar, a fixed output spout, the height-adjustable TP Vario Spout, a hydraulic winch or telescopic ejector spout
Specifications
Model | TP215 Mobile |
|---|---|
Max. wood diameter | 216 mm |
Roller opening | 216 x 265 mm |
Engine make | Hatz 3H50TICD |
Engine power HP/kW | 59 HP / 44 kW |
Number of cylinders | 3 |
Torque | 203 Nm |
Control unit | TP STARTER/TP PILOT + |
Fuel | Diesel |
Tank size | 52 litres |
Fuel consumption | 4 L/h (210g/kWh) |
Capacity/hour | 20 m3 |
Woodchip size | 4-14 mm |
Adjustable woodchip size | Yes |
Woodchip standard | G30/G50/G100* |
Feed rollers | 2 |
Roller position | Horizontal |
Chipper type | Disc chipper |
In-feed angle | Parallel to direction of travel |
Chipping angle | 90º |
TP E-STOP™ | Yes |
TP EASY CONTROL™ | Yes |
TP OPTICUT | Yes |
Number of knives / counterknives | 4 / 3 |
Disc diameter / weight | 760 mm / 140 kg |
Noise level, in acc. with directive
2000/14/EC | 125 dB |
Infeed hopper width | 1,176 mm |
Funnel height (above ground) | 684 mm |
TP VARIO SPOUT | Optional |
Weight | 1,400 kg |
