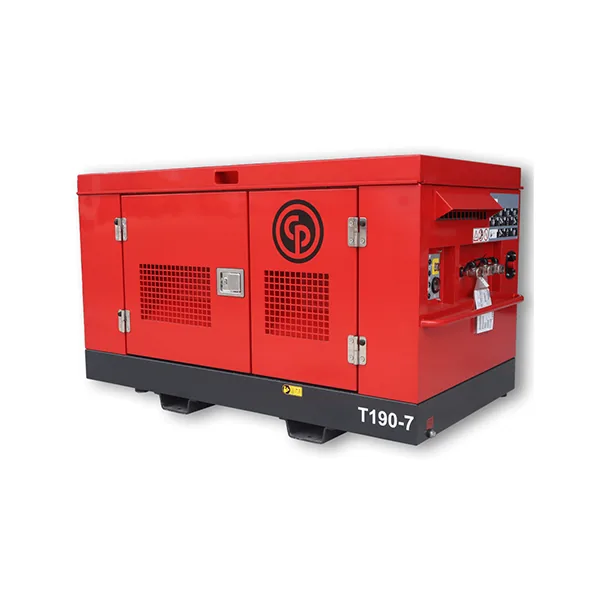

Chicago Pneumatic T190-7, 190 cfm Skid Mounted Diesel Air Compressor
When you need reliable air on the move, the Chicago Pneumatic T190-7 delivers. With 190 CFM at 7 bar, it’s built to run a wide range of pneumatic tools and equipment – all from the back of your service truck or trailer.
This compact, skid-mounted utility compressor features a durable Kubota diesel engine, efficient footprint, and stackable housing that fits where you need it most. From mobile service to infrastructure and utilities, it’s a proven performer in the field.
With one-sided servicing and rugged design, the T190-7 is engineered for easy integration, fast maintenance, and long-term reliability.
Key Features
- 190 cfm output at 7 bar
- Skid-mounted – perfect for truck or ute mounting
- Kubota engine for proven performance
- Designed for field reliability and easy servicing
- Compact and stackable – ideal for space-limited installs.
Power your team and your tools.
Specifications
Model | T190-7 |
|---|---|
Normal effective working pressure (bar (psi)) | 7 (100) |
Free air delivery (l/s) | 90 |
Free air delivery (cfm) | 190 |
Free air delivery (m3/min) | 5.4 |
Max. ambient temperature at sea level (°C) | 50 |
Min. starting temperature (°C) | -10 |
Min. starting temperature (Cold Start Aid) (°C) | -20 |
Engine | – |
Model | Kubota V1505T |
Number of cylinders | 4 |
Power output @ normal shaft speed (kW) | 32.5 |
Full load RPM (rpm) | 3000 |
Unload RPM (rpm) | 1600 |
Capacity | – |
Engine oil (l) | 5.5 |
Compressor oil (l) | 9 |
Fuel Tank (l) | 62 |
Optional extended fuel tank (l) | 23 |
Box unit dimensions | – |
Length x Width x Height (mm) | 1870 x 950 x 1040 |
Weight (kg) | 750 |
