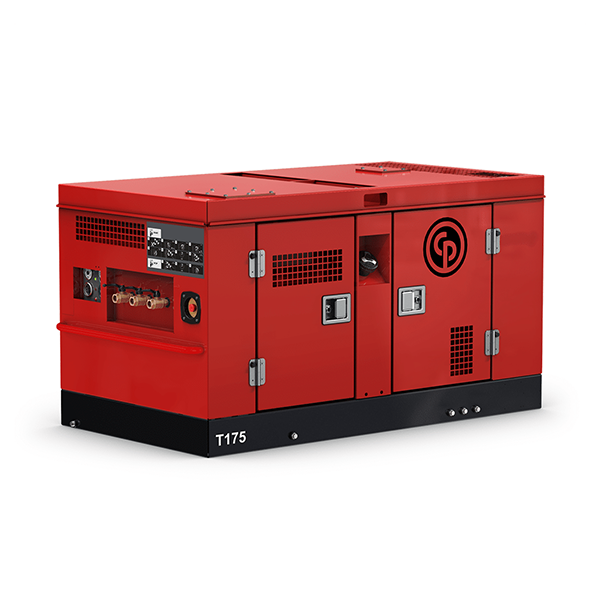

Chicago Pneumatic T175-7, 175 cfm Skid Mounted Diesel Air Compressor
Need more air without losing valuable truck space? The Chicago Pneumatic T175-7 delivers 175 CFM at 7 bar – ideal for contractors running multiple tools or heavier-duty equipment in the field.
This skid-mounted utility compressor is purpose-built for mounting to trucks, trailers, or service utes. Its compact footprint allows for easy stacking, while the Kubota diesel engine ensures dependable performance day in, day out.
With single-side service access, the T175-7 is as easy to maintain as it is to operate. Rugged, powerful, and truck-ready — it’s the perfect fit for serious mobile operations.
Key Features
- 175 cfm free air output
- Skid-mounted – perfect for truck or ute integration
- Durable Kubota diesel engine
- Compact, stacked design
- Low service downtime for busy teams
Perfect for heavy-duty mobile operations.
Specifications
Model | T175-7 |
|---|---|
Normal effective working pressure (bar (psi)) | 7 (100) |
Free air delivery (l/s) | 83 |
Free air delivery (cfm) | 175 |
Free air delivery (m3/min) | 5 |
Max. ambient temperature at sea level (°C) | 50 |
Min. starting temperature (°C) | -10 |
Min. starting temperature (Cold Start Aid) (°C) | -20 |
Engine | – |
Model | Kubota V1505T |
Number of cylinders | 4 |
Power output @ normal shaft speed (kW) | 32.5 |
Full load RPM (rpm) | 3000 |
Unload RPM (rpm) | 1600 |
Capacity | – |
Engine oil (l) | 5.5 |
Compressor oil (l) | 9 |
Fuel Tank (l) | 62 |
Optional extended fuel tank (l) | 23 |
Box unit dimensions | – |
Length x Width x Height (mm) | 1870 x 950 x 1040 |
Weight (kg) | 750 |
