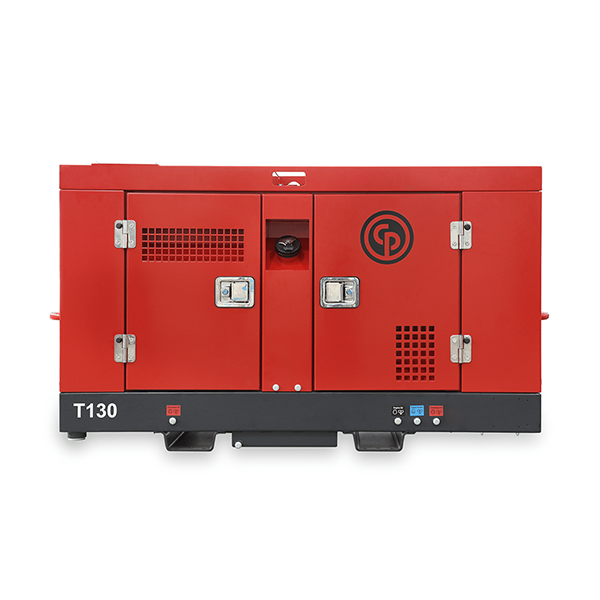

Chicago Pneumatic T130-7, 130 cfm Skid Mounted Diesel Air Compressor
The Chicago Pneumatic T130-7 is a workhorse built for mobile air delivery. With 130 CFM at 7 bar, it’s ready to power a wide range of tools and handle everyday site demands – from fencing and fibre installs to utility maintenance.
This skid-mounted utility compressor is engineered to fit easily onto service trucks, trailers, or flatbeds. With a compact and stackable build, plus single-side servicing, the T130-7 is designed for simple integration and efficient operation.
Powered by a reliable Kubota diesel engine, this compressor is all about uptime, performance, and practicality on the move.
Key Features
- 130 cfm at 7 bar
- Compact, skid-mounted design
- Reliable Kubota diesel drive
- Compact design with excellent service access
- Stackable – save space in fleet builds
Get the air you need, where you need it.
Specifications
Model | T130-7 |
|---|---|
Normal effective working pressure (bar (psi)) | 7 (100) |
Free air delivery (l/s) | 61 |
Free air delivery (cfm) | 130 |
Free air delivery (m3/min) | 3.7 |
Max. ambient temperature at sea level (°C) | 50 |
Min. starting temperature (°C) | -10 |
Min. starting temperature (Cold Start Aid) (°C) | -20 |
Engine | – |
Model | Kubota 1505 |
Number of cylinders | 4 |
Power output @ normal shaft speed (kW) | 26.5 |
Full load RPM (rpm) | 3000 |
Unload RPM (rpm) | 1600 |
Capacity | – |
Engine oil (l) | 5.5 |
Compressor oil (l) | 9 |
Fuel Tank (l) | 62 |
Optional extended fuel tank (l) | 23 |
Box unit dimensions | – |
Length x Width x Height (mm) | 1870 x 950 x 1040 |
Weight (kg) | 750 |
