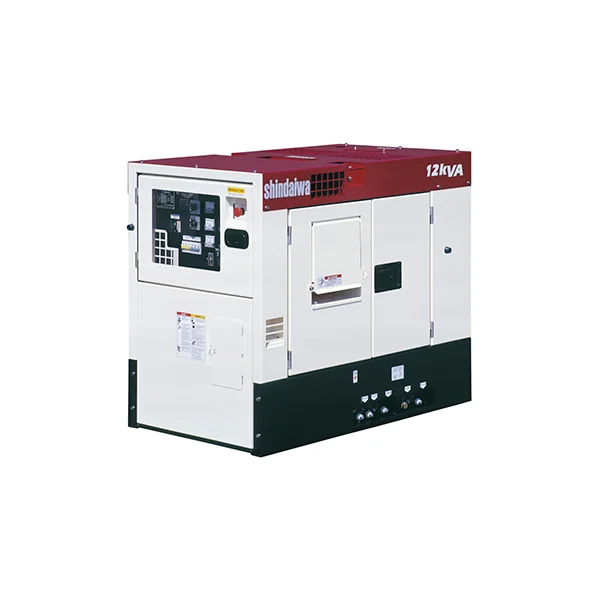

12kVA Generator – Shindaiwa Super Silenced
ID Rent primarily utilise the Shindaiwa range of generators. Shindaiwa offer Ultra-Quiet technology which significantly reduces generator sound levels.
Our generator enclosures feature thicker panels than many other generators utilising engineered sound-absorbing foam. Sound levels are subsequently much lower with the added benefit of increased unit rigidity.
Most of our Shindaiwa generators have been fitted with 24 hour+ fuel tanks to provide our clients with greater running capacity thus reducing your refueling requirements.
Specifications
Generator Model | DGA12D |
|---|---|
Frequency (Hz) | 50 |
Rated Output (kVA/kW) | 12/9.6 |
Rated Voltage (V) | 415/240 |
Rated Current (A) | 16.7 |
Outlets (1 Phase) | 3 x 15A |
Outlets (3 Phase ) | 1 x 20A |
Number of Poles | 4 |
Rated Power Factor | 0.8 (Lagging) |
Sound Level @ 7Meters dB(A) | 51 |
Dieisel Engine | – |
Model | Kubota D1703 |
Emission Rating | Tier 3 |
Air Induction System | N/A |
Number of Cylinders | 4 |
Bore and Stroke mm x mm | 87×92.4 |
Displacement (L) | 1.647 |
Rated Output (kW) | 12.4 |
Rated Speed (RPM) | 1500 |
Fuel | Diesel |
Fuel Consumption 75% L/Hr | 2.61 |
Fuel Tank Capacity (L) | 60 |
Physical Characteristics | – |
Dimensions (LxWxH) (mm) | 1350 x 780 x 1140 |
Dry Weight (kg) | 680 |
