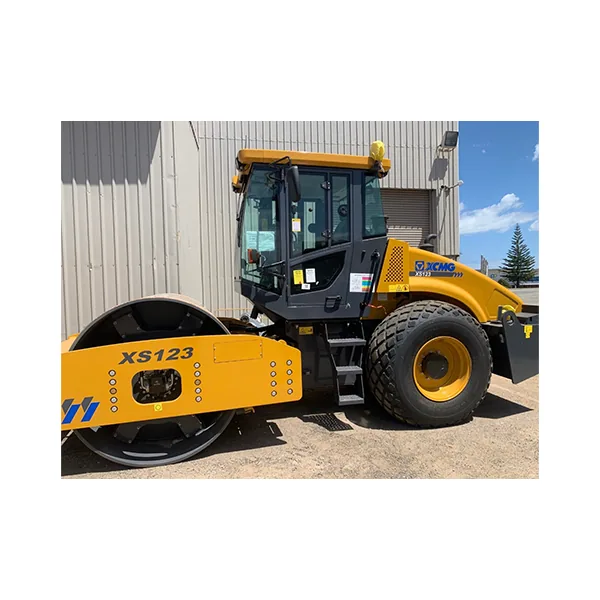

12 Ton Smooth Drum Roller
The 12 Ton Smooth Drum Roller (XCMG XS123) roller is uniquely powerful, rugged, energy efficient, safe and reliable. The cabin is ergonomically designed with air conditioning, control box integrated colour display, suspension seat, CANBUS joystick controls for easy and comfortable operation. Engine hood tilts forward for great access making the XS123 Roller easy to maintain.
The the XS123 Roller is fitted with Cummins QSF3.8 water-cooled turbocharged engine. Providing high power reserve, low fuel consumption and low noise emission. Drive performance and grade-ability are optimised by the closed loop hydraulic drive system.
Automatic torque allocation and maximum traction are enhanced by the medium wet type axle with anti-slip differential suitable for any road condition
Specifications
Model | XD120S |
|---|---|
Operating Weight | 12000kg |
Engine | Cummins QSF3.8 |
Engine Type | Electronic Water-Cooled |
Rated Power | 104kW |
Rated Speed | 2200r/min |
Front Axle Weight | 6700kg |
Rear Axle Weight | 5300 kg |
Static Linear Load | 31.5 kg/cm |
Operating Speeds | 0-5.5 / 0-11.2 km/h |
Theoretical Gradeability | 45% |
Min Turn Radius (internal / external) | 4500 / 6800 mm |
Ground Clearance | 393mm |
Wheel Base | 30100mm |
Braking Distance | 3.9m |
Vibration Frequency | 30/35 Hz |
Nominal Amplitute | 1.8 / 0.9 mm |
Exciting Force (High/Low) | 280 / 190 kN |
Drum Diameter | 1523mm |
Drum Width | 2130mm |
Charge Pressure of Drive System | 2.4Mpa |
Relief Pressure of Drive System | 35Mpa |
Relief Pressure of Vibration System | 30Mpa |
Relief Pressure of Steering System | 16Mpa |
Padfoot Roller | No |
Steering Angle | ±30° |
Swing Angle | ±10° |
Drum Type | Smooth |
