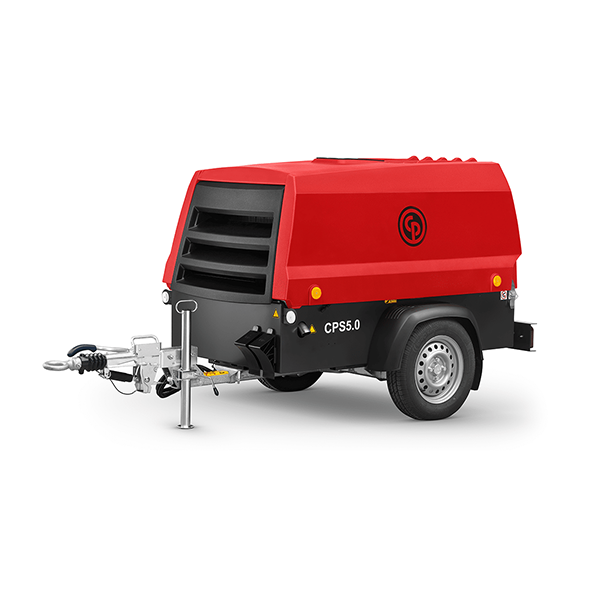

Chicago Pneumatic CPS5.0-7, 177 cfm Portable Diesel Air Compressor
When you need serious air power without sacrificing portability, the Chicago Pneumatic CPS5.0-7 delivers. Producing 177 cfm at 7 bar (100 PSI), this diesel-powered compressor is built tough for heavy-duty job sites, roadworks, and maintenance projects. Maximum reliability, minimum hassle.
Why Choose the CPS5.0-7?
- 177 cfm of free air delivery at 7 bar
- Rugged towable design for easy transport
- Fuel-efficient diesel engine to lower running costs
- Quick, easy service access to keep you moving
- Designed for durability in harsh environments
- Backed by trusted Chicago Pneumatic performance
Take the power you need anywhere the job demands.
Specifications
Model | CPS5.0-7 |
|---|---|
Normal effective working pressure (bar (psi)) | 7(100) |
Free air delivery (cfm) | 177 |
Free air delivery (m3/min) | 5.0 |
Free air delivery (l/s) | 83 |
Output power (kVA) | – |
Sound pressure level (LpA) at 7m (dB(A)) | 70 |
Sound power level (LwA) (dB(A)) | 98 |
Max. Ambient temperature at sea level (°C) | 50 |
Min. Starting temperature (°C) | -10 |
Min. Starting temperature (Cold start aid) (°C) | -20 |
Engine | – |
Model | Kubota V 1505T |
Number of cylinders | 4 |
Power output @ normal shaft speed (kW) | 33 |
Full load RP (rpm) | 3000 |
Unload RPM (rpm) | 1850 |
Capacity | – |
Engine oil (l) | 5.5 |
Compressor oil (l) | 8 |
Fuel tank (l) | 60 |
Box unit dimensions | – |
Length x Width x Height (mm) | 1950 x 1180 x 1120 |
Weight (kg) | 650 |
Undercarriage dimensions | – |
Type | Trailer mounted with adjustable towbar (without brakes) |
Length x Width x Height (mm) | 2300 x 1350 x 1430 |
Weight (kg) | < 750 |
