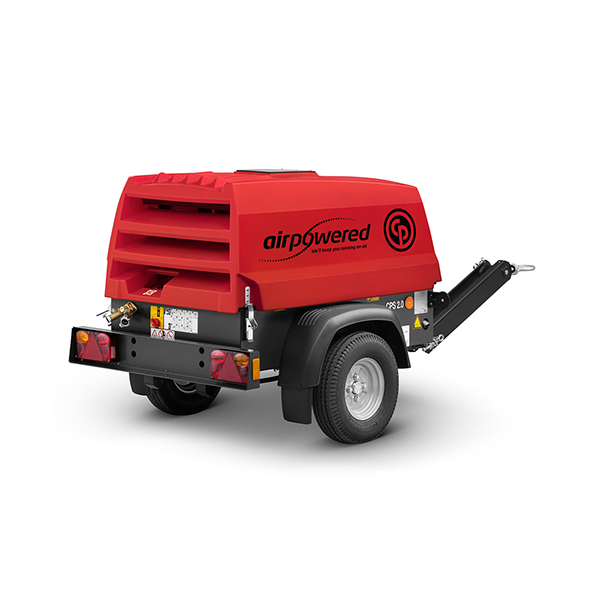

Chicago Pneumatic CPS2.0-12, 80 cfm Portable Diesel Air Compressor
Tough site? Tight schedule? No problem. The Chicago Pneumatic CPS2.0-12 delivers 80 cfm of reliable compressed air at 12 bar (175 PSI), all in a compact, towable design that’s built to handle real-world job sites. This portable diesel compressor punches well above its weight, keeping your tools powered and your team productive day in, day out.
Why Choose the CPS2.0-12?
- 80 cfm of free air delivery at 12 bar pressure
- Lightweight and easy to tow for maximum flexibility
- Rugged chassis and weather-resistant build
- Diesel-powered efficiency for lower fuel costs
- Quick service access for minimal downtime
- Chicago Pneumatic engineering for unbeatable reliability
Keep your projects moving with a compressor that won’t slow you down.
Specifications
Model | CPS2.0-12 |
|---|---|
Normal effective working pressure (bar (psi)) | 12(175) |
Free air delivery (cfm) | 80 |
Free air delivery (m3/min) | 2.3 |
Free air delivery (l/s) | 38 |
Output power (kVA) | – |
Sound pressure level (LpA) at 7m (dB(A)) | 70 |
Sound power level (LwA) (dB(A)) | 98 |
Max. Ambient temperature at sea level (°C) | 50 |
Min. Starting temperature (°C) | -10 |
Min. Starting temperature (Cold start aid) (°C) | -20 |
Engine | – |
Model | Kubota V 1505 |
Number of cylinders | 4 |
Power output @ normal shaft speed (kW) | 26.5 |
Full load RP (rpm) | 3000 |
Unload RPM (rpm) | 1800 |
Capacity | – |
Engine oil (l) | 5.5 |
Compressor oil (l) | 8 |
Fuel tank (l) | 60 |
Box unit dimensions | – |
Length x Width x Height (mm) | 1950 x 1180 x 1120 |
Weight (kg) | 650 |
Undercarriage dimensions | – |
Type | Trailer mounted with adjustable towbar (without brakes) |
Length x Width x Height (mm) | 2300 x 1350 x 1430 |
Weight (kg) | < 750 |
